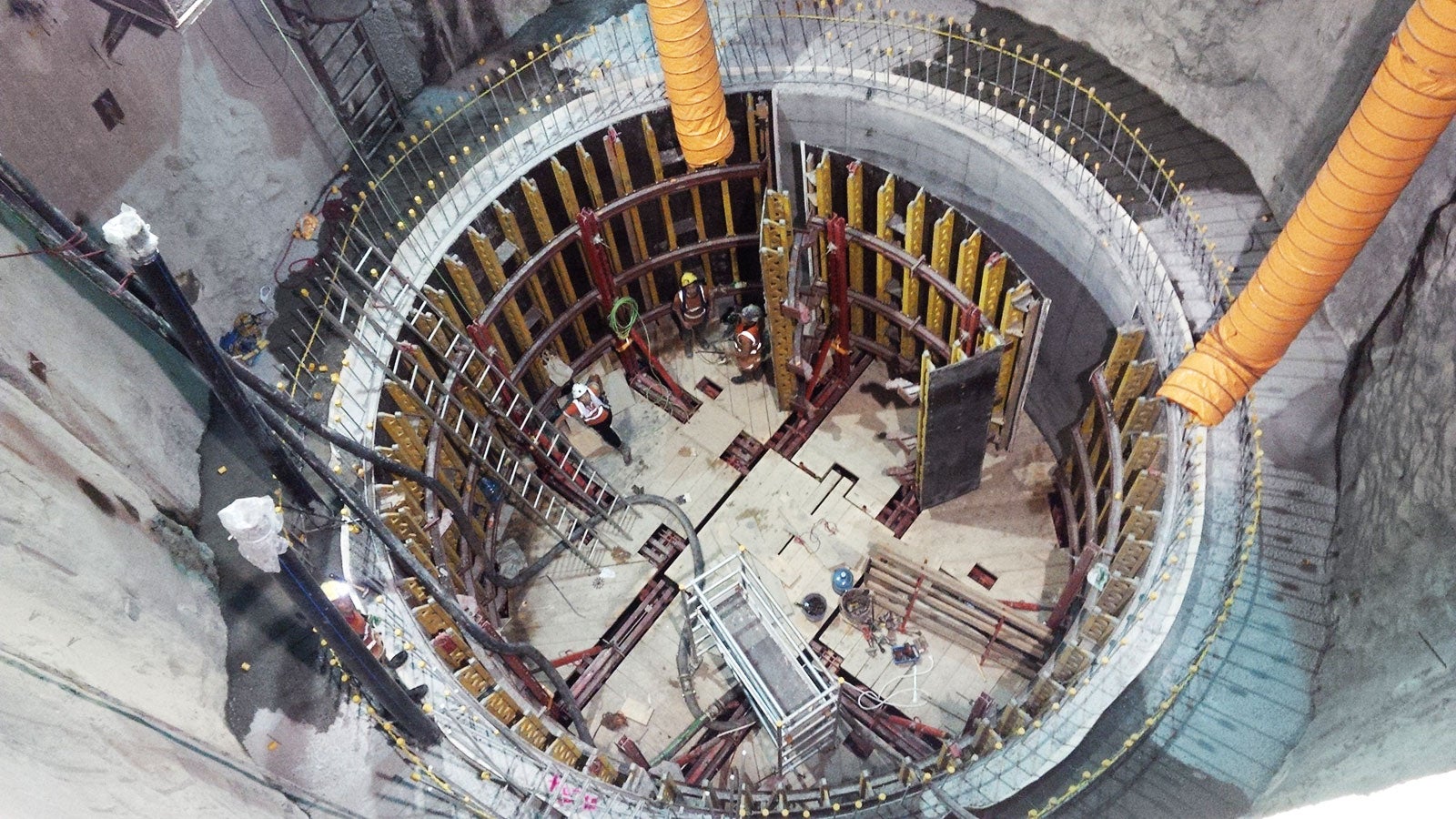

First strip of typical circular system. Note purpose-made circular walers to determine form profile.

Harbour Area Treatment Scheme - PTW Drop Shafts & Scum Chambers
Hong Kong Island, Hong Kong

The Harbour Area Treatment Scheme - PTW Drop Shafts & Scum Chambers Shaft Sites project involves the construction of four PTW dropshafts and scum chambers:

Aberdeen PTW Dropshaft & Scum Chamber
Overall Depth: 9.20 m
Wah Fu PTW Dropshaft & Scum Chamber
⁠Overall Depth: 22.5 0m
⁠Cyberport PTW Dropshaft & Scum Chamber
⁠Overall Depth: 17.80 m
⁠Sandy Bay PTW Dropshaft & Scum Chamber
Overall Depth: 18.80 m

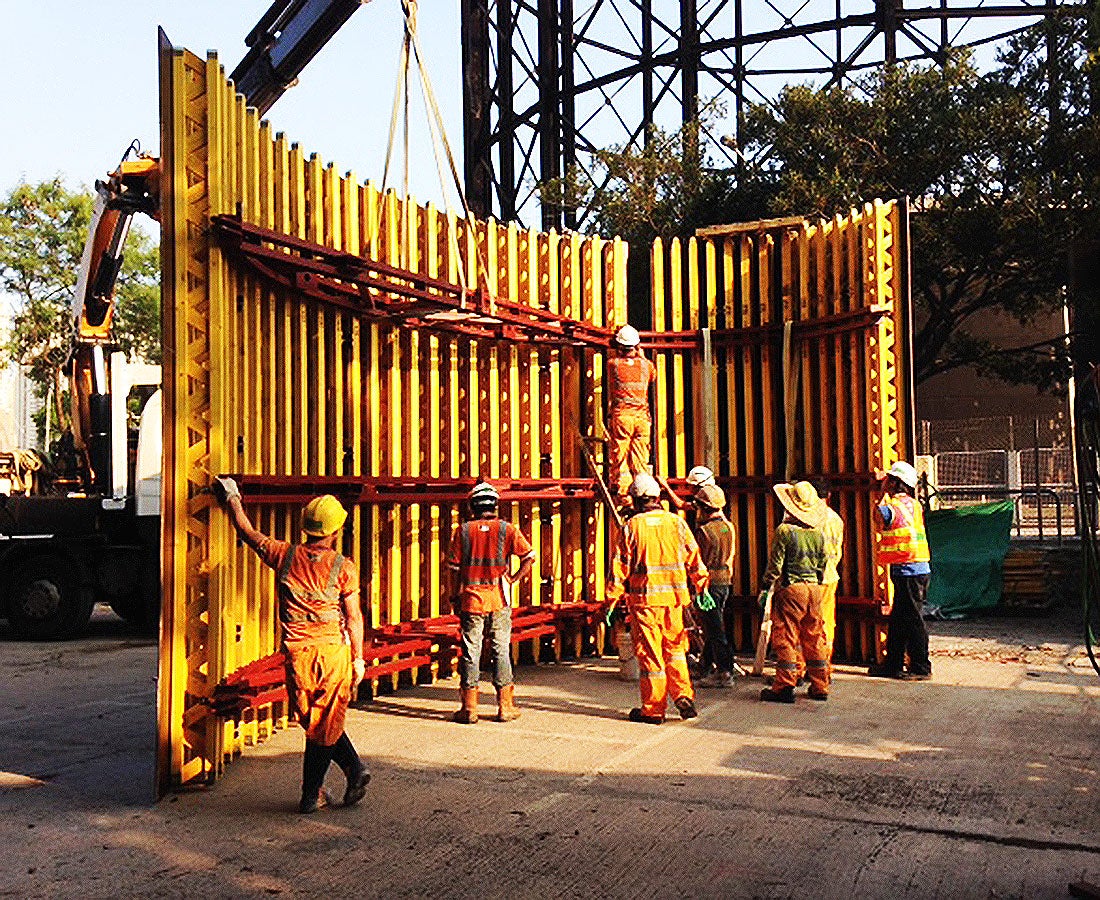

From July to October 2014, the project involved concrete lining of pre-excavated shafts, each with a uniquely designed scum chamber. The Wah Fu shaft features an elliptical design with a lining size of 7 m by 5 m, while the other shafts are circular with a diameter of 8 m.

Executed with a focus on efficiency and safety, the project ensured rapid construction and minimal disruption. Optimized dimensions facilitated easy operation, prioritizing worker safety throughout the process. Overall, the Shaft Sites project significantly enhances the area's wastewater management infrastructure.

Project participants
Customer: Leighton - LNS JV

The Project

Impressions from the project process

1 /
2
First strip of typical circular system. Note purpose-made circular walers to determine form profile.
First strip of typical circular system. Note purpose-made circular walers to determine form profile.

The first strip of typical circular system.

Purpose-made circular walers to determine form profile.

Project Requirements and Solutions

Requirements
Fast construction progress, easy system operation
Minimum crane usage for the system
Form elements to follow the structure shape (circular, elliptical and rectangular)
Optimized element sizes, hinges and retraction devices used for stripping, no additional assembly/ modification works necessary during the construction
Maximum safety for workers
Central opening in platforms for material and manpower transfer

show more
Solutions

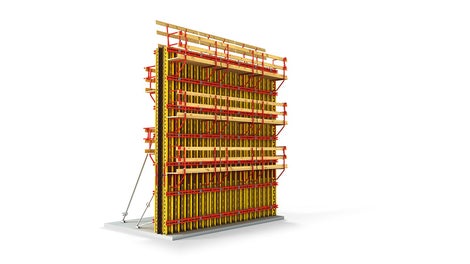

Vario GT 24 single sided wall formwork, with purpose-made shaped walers to obtain the profile

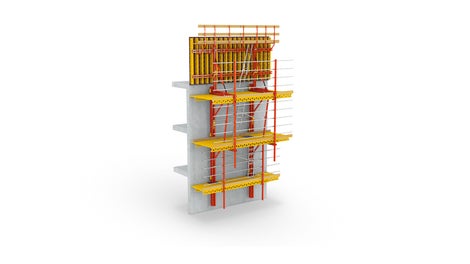

RCS custom made climbing platform, requiring only 4 wall anchors thus reducing setting and repair time
BR units inside the Scum Chambers for safe and simple support and operation

Customer benefits
Easy to use, with no skilled labour required
Each shaft system capable of self-climbing, sharing one set of mobile hydraulic system
Fast and reliable
Able to meet the tight programme requirements of 5 months to complete all shafts
Technical Supervisor to ensure a swift, trouble-free start-up

show more
